Centra Architectural Umbrella

Centra Architectural Umbrella

Central Support Permanent Umbrella

The most popular and versatile umbrella in the MakMax commercial umbrella range, the Centra Architectural Umbrella is the perfect entertainer – ideal for cafes, restaurants, pubs, clubs and bars. The Centra model can be customised with prints and patterns or you can add planter boxes or other accessories. These iconic umbrellas are one of the most popular and cost effective options in MakMax’s commercial umbrella range.

  • Centra umbrella models are available in a range of sizes from 2.7m up to 5m
  • Shapes available are square, truncated square, rectangular, hexagonal and octagonal
  • Wind rated to 120km/hr
  • Fabric and steel colour options are available
  • Heating and LED lighting can be included
  • Ability to link multiple umbrellas together to increase seating area
  • In-ground socket option available on selected models (perfect for alfresco dining where the umbrella can be stored away)
  • Above ground concrete base available when ground fixing is not an option

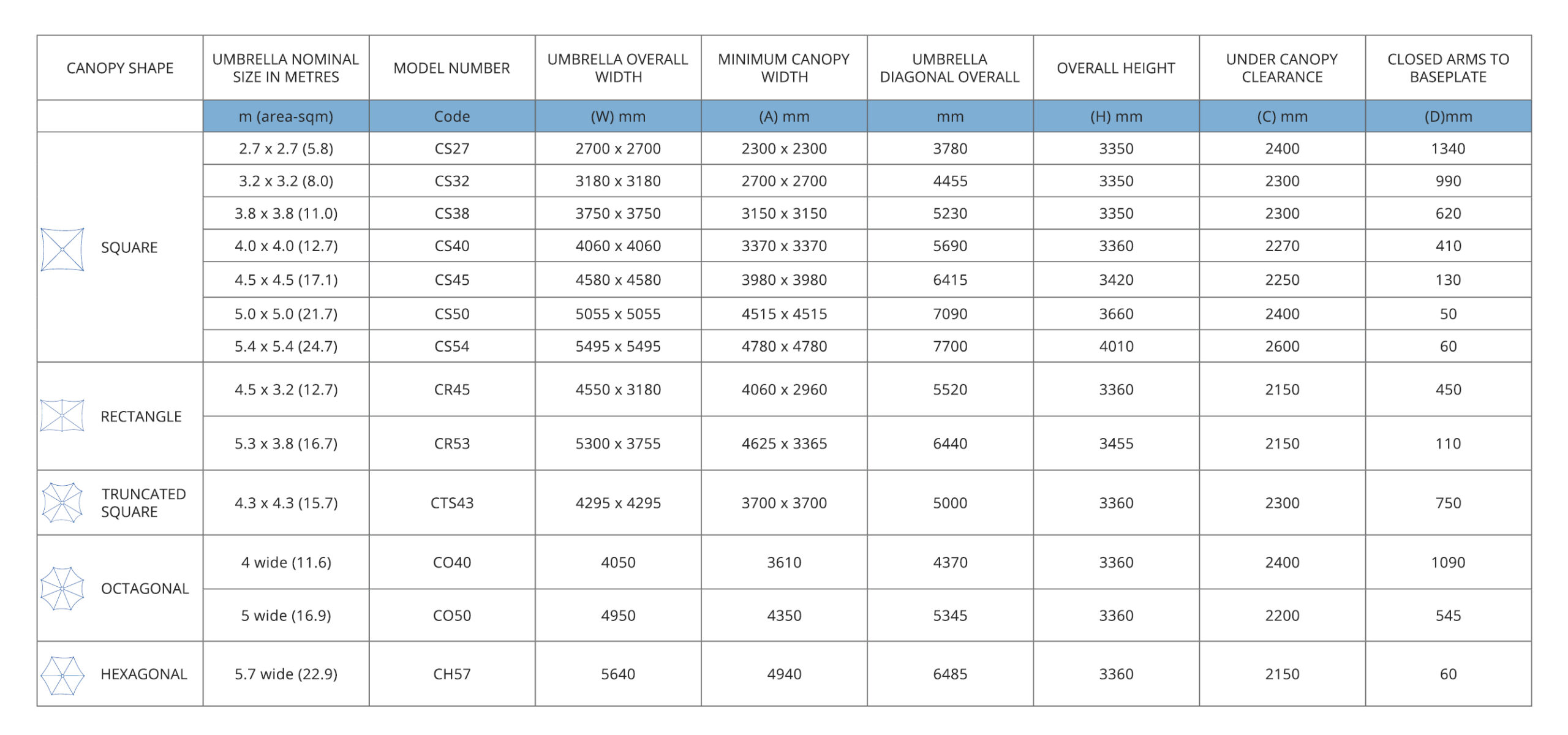

Canopy shapeModel NameModel NumberCanopy SizeMax. Canopy WidthMin. Canopy WidthDiagonal OverallOverall HeightUnder Canopy ClearanceClosed Arms To Baseplate
m (area-sqm)(W) mm(A) mm(D) mm(H) mm(C) mm(B) mm
SQUARECENTRACS272.7 (5.8)270023003780335024001340
CENTRACS323.2 (8.0)31802700445533502300990
CENTRACS383.8 (11.0)37503150523033502300620
CENTRACS404.0 (12.7)40603370569033602270410
CENTRACS505.0 (21.7)5055451570903660240050
TRUNCATED SQUARECENTRACTS434.3 (15.7)42953700500033602300750
HEXAGONALCENTRACH575.7 (22.9)5640494064853360215060
OCTAGONALCENTRACO404 (11.6)405036104370336024001090
CENTRACO505 (16.9)49504350534533602200545

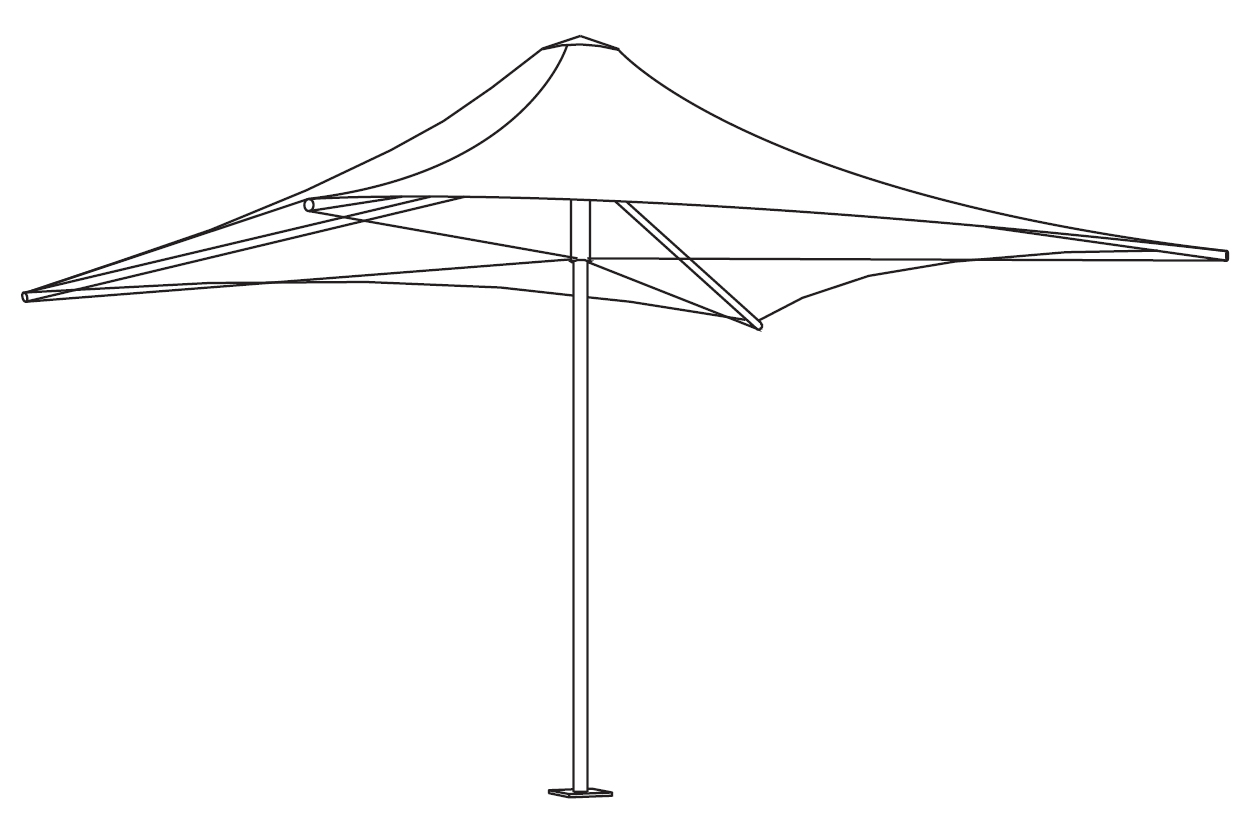

Centra Architectural Umbrella Dimension Diagram
