Leva Architectural Umbrella

Leva Architectural Umbrella

Collapsible Cantilever Outdoor Umbrella

Leva Umbrella Icons

Visually impressive, the cantilevered pole allows on the Leva Architectural Umbrella allows for maximised use of space underneath the canopy. Ideal for applications such as pool shade, beach clubs, function spaces and playgrounds, the Leva is also perfect for alfresco dining applications, offering shade and shelter without requiring a central column through the dining table.

  • The Leva Architectural Umbrella’s cantilever column maximises shade and weather protection area.
  • Available in either 2.7m or 32.m models.
  • Cantilever Umbrella.
  • Premium Commercial Outdoor Umbrella.
  • Architectural-grade PVC canopy (coated polyester fabric with a PVDF finish to both sides).
  • Steel frame with 4-step powdercoat protection system.
  • Leva Architectural Umbrellas are square as standard, but can be adapted to other shapes for bespoke applications.
  • Wind rated to 120km/hr.
  • Fabric and steel colour options are available.
  • Heating and LED lighting can be included.
  • Ability to link multiple umbrellas together to increase seating area.
  • A Swivel/Rotating Boom allows full 360 degree rotation for dynamic coverage.
  • Wall mounted boom or Double Boom (two canopies on a single central columm) options available.

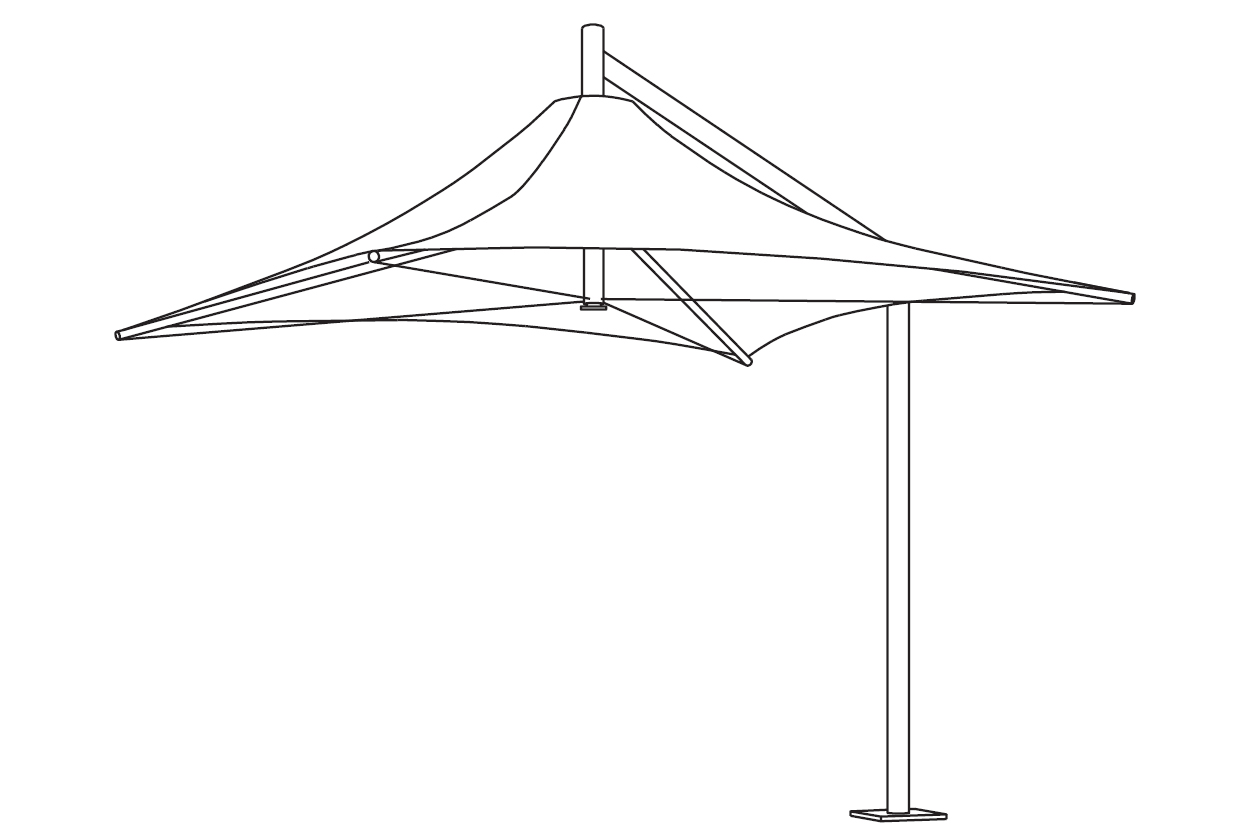

Leva Architectural Umbrella Line Drawing

Leva Opening & Closing Procedure

Canopy shapeModelCodeCanopy Size Max. Canopy WidthMin. Canopy WidthDiagonal OverallOverall HeightOverall WidthUnder Canopy ClearanceClosed Arms To Baseplate
m (area-sqm)(W) mm(A) mm(D) mm(H) mm(F) mm(C) mm(B) mm
SQUARELEVALS272.7 (5.8)2700230037803540283522501190
LEVALS323.2 (8.0)318027004455358033252250880
Leva Architectural Umbrella Dimension Diagram
