Corner Support Shade Structure

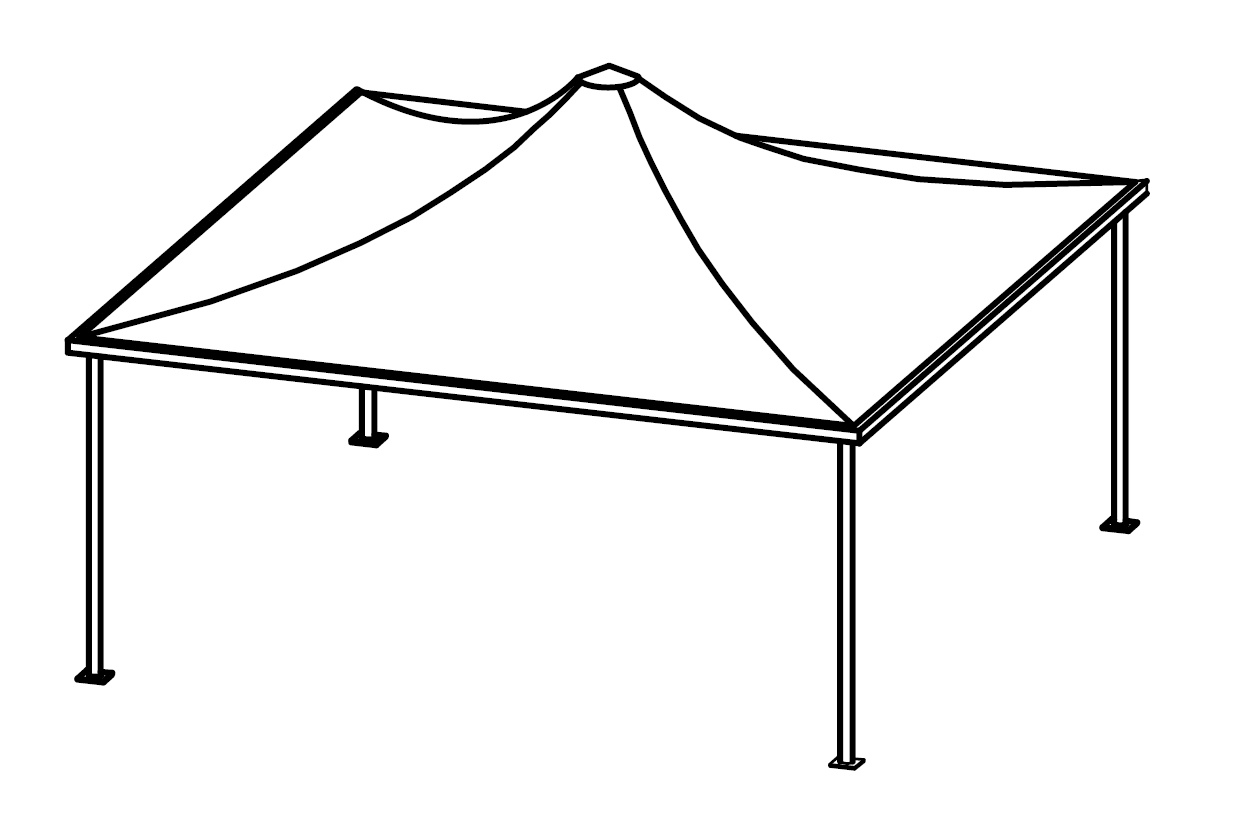

The Pavilion Modular Structure has perimeter columns in each corner, providing clear access under the full canopy area.
The perimeter columns have a lower foundation load compared to the Monaco and other central column structures, making it easier to install on existing slabs and ideal for integrating guttering and blinds.
Pavilion is perfect for outdoor dining areas, function spaces, and wedding venues. The Pavilion is also well suited to school assembly areas and playground shade, and multiple units can be joined together to create sheltered walkways.
Completely weather-proof, Pavilion Modulars include galvanised steel cables with stainless steel fittings and UV stabilised membrane.
CUSTOMISATION
- Multiple units can be linked together to increase the shade and weather protected area.
- Available in Contour Edge and Linear Edge.
- Square as standard, increasing the number of arms/columns can create other geometric shapes; pentagonal, hexagonal or octagonal.
- Available with a range of accessories, such as LED lighting and heating.
- Roll-down blinds and gutters can also be fitted to Pavilion Linear Edge models.

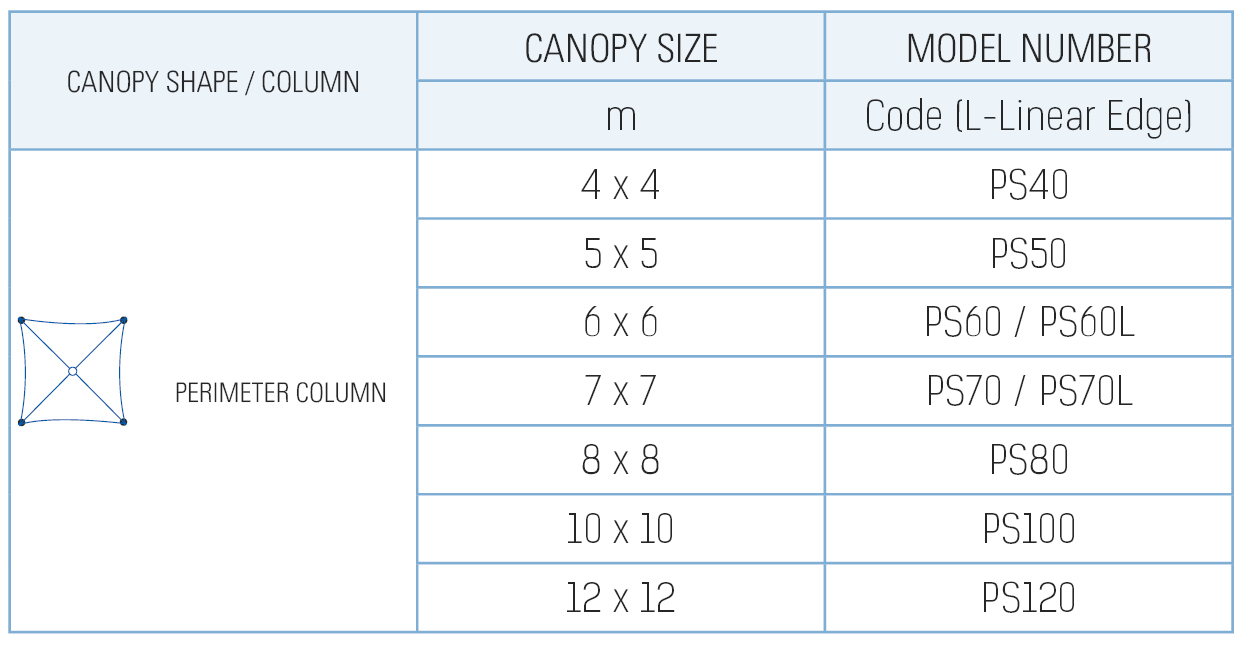

| MODEL NUMBER | APPROX. CANOPY AREA | STRUCTURE WIDTH | STRUCTURE HEIGHT | UNDER CANOPY CLEARANCE | STRUCTURE DIAGONAL |
|---|---|---|---|---|---|
| m2 | (W) mm | (H) mm | (C) mm | (D) mm | |
| PS40 | 13.9 | 4160 | 3515 | 2400 | 5820 |
| PS50 | 21.7 | 5160 | 3770 | 2400 | 7240 |
| PS60 | 31.3 | 6180 | 4400 | 2700 | 8690 |
| PS70 | 42.6 | 7180 | 4600 | 2700 | 10090 |
| PS80 | 55.6 | 8230 | 4860 | 2700 | 11580 |
| PS90 | 70.3 | 9230 | 5430 | 3000 | 13040 |
| PS100 | 87.2 | 10280 | 5675 | 3000 | 14645 |
| PS120 | 125.4 | 12370 | 6160 | 3000 | 17394 |
| Dimensions are a guide-only. A minimum of 100mm clearance to any building, poles or other structures is recommended. Contact MakMax for Linear Edge model dimensions. |
|||||
Linear Edge
Increase your usable space with a Pavilion Linear Edge model. Ideal for alfresco dining, a straight edge means more seating under the canopy.
A fixed, straight-edge also adds the ability to attach guttering or drop blinds, making the structure even more weather-proof.
Linking Options
With in-house engineering expertise and a clever modular design, the Pavilion Modular Shade Structure can be linked in multiple configurations to create expansive shaded areas.
When in a linked configuration, each frame is engineered with corner connection points, allowing several modules to be joined seamlessly beneath a single, continuous PVC canopy. Linking is possible with either the Catenary Edge or Linear Edge models.
Combine two or three units for a generous outdoor dining space, or link a full row of modules to form a striking covered walkway that ties your outdoor areas together.
