Matagarup Bridge Soffit
Location: Perth, WA
Completion Date: July 2018
Size: 3900 sqm
Fabric: PTFE - Chukoh FGT800 BK
Client: Western Australian State Gov and York Civil/ Rizzani de Eccher

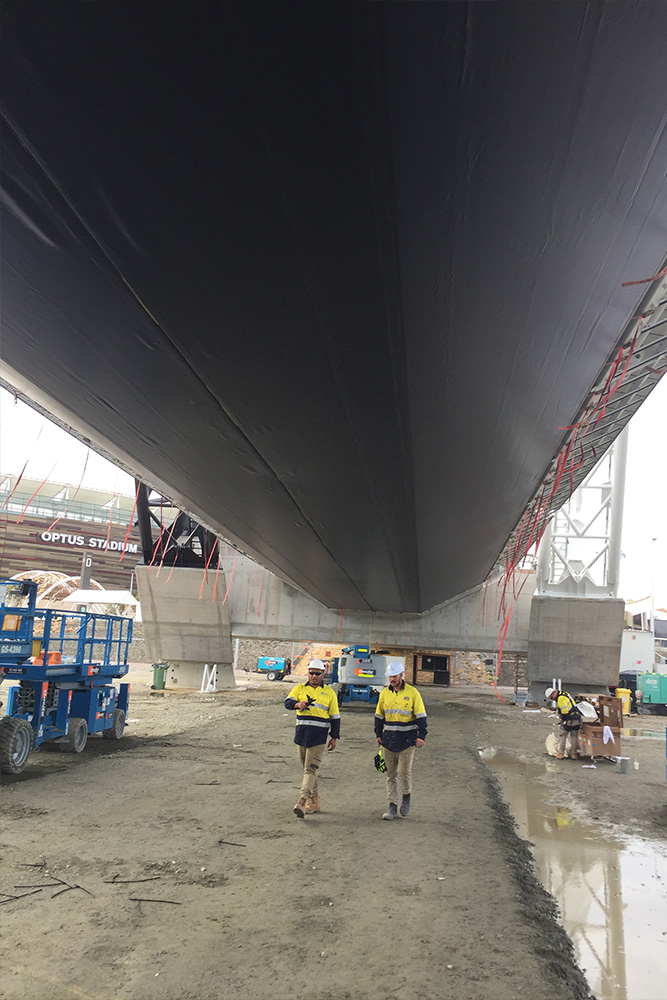

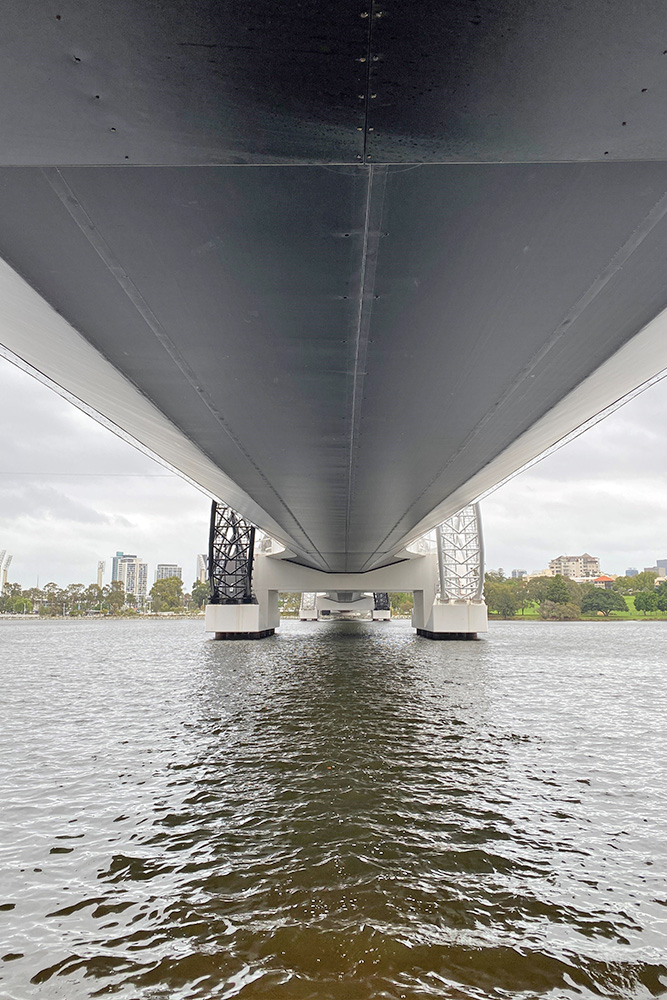

The Matagarup Bridge Soffit is a fabric façade installed beneath the concrete and steel deck of the bridge.

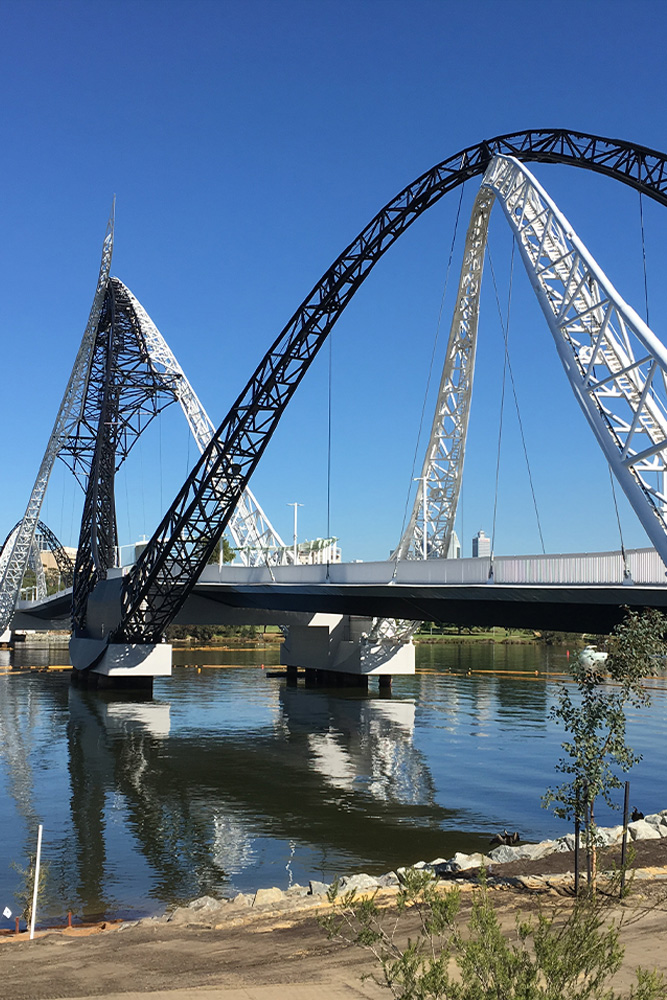

The pedestrian bridge over the Swan River, named Matagarup Bridge after the Nyungar name for the area, was originally proposed and planned to feature elegantly curved support sections fully enclosed in alternate black and white PTFE membrane. The design was changed mid-project to hero the exposed curved steel elements of the bridge.

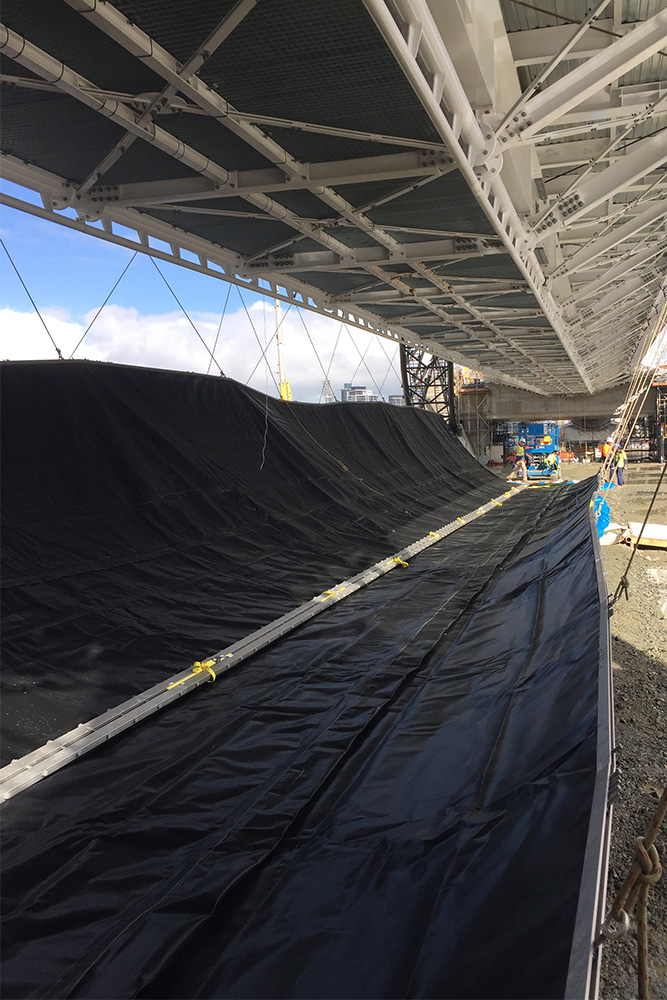

The design team however, retained the planned PTFE membrane soffit below the concrete and steel walking deck. The membrane soffit completes the smooth, unbroken the profile of the bridge.

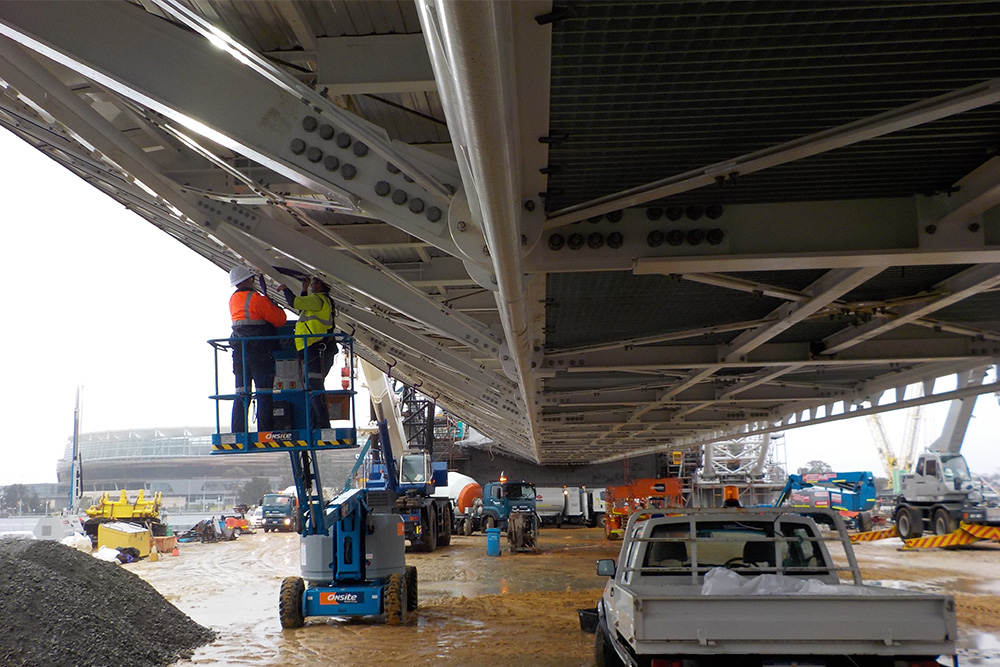

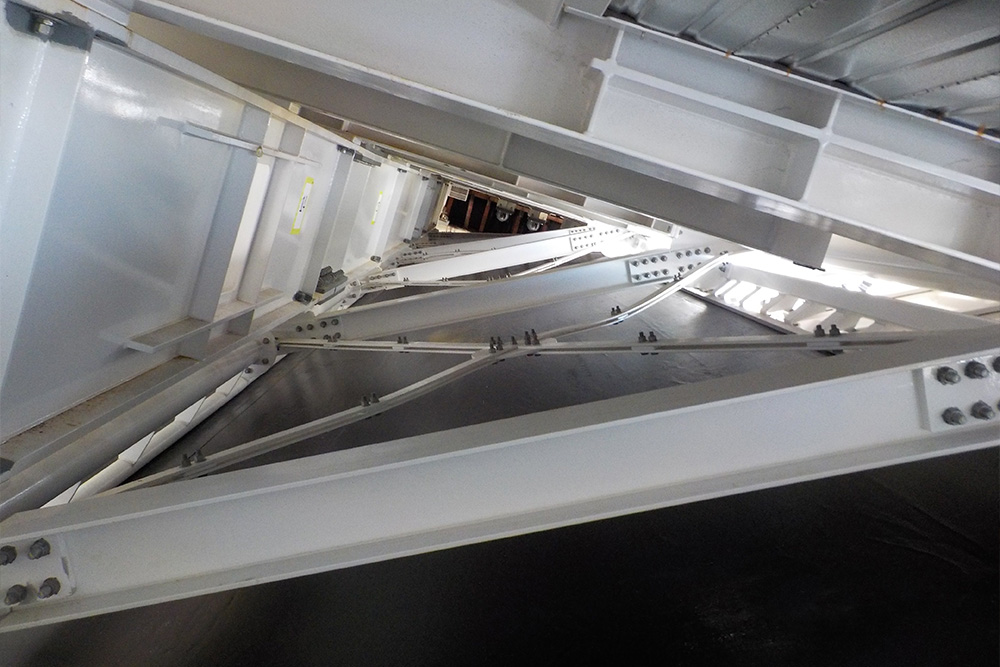

This innovative use of a tensile membrane soffit along the underside of the walkway helps to hide the bridge’s steel formwork and services. The Matagarup Bridge Soffit is easily replaceable in case of damage, and the membrane panels also allow access to the underside of the bridge for safety inspections.

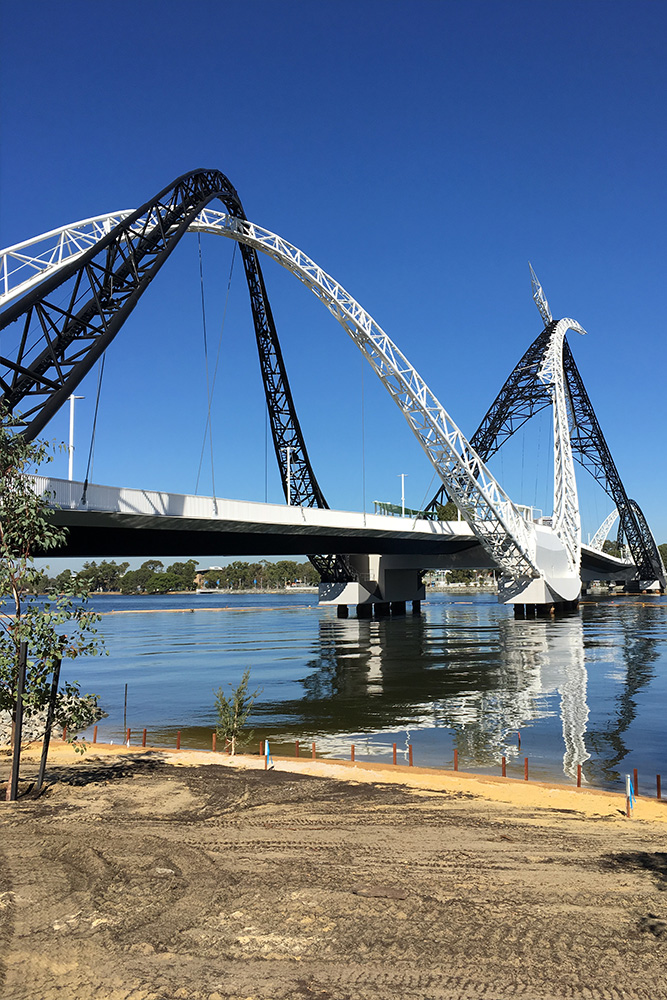

The open steel structure of the bridge is now a major tourist attraction in Perth, with a bridge climb, viewing platform and zipline connecting the centre of the bridge back to the shore – Matagarup Zip + Climb.
