Granville Park Helios Shade Structures
Project Details
Location: Merrylands, NSW
Completion Date: Feb 2026
Size: 150 sqm
Fabric: PVC - Serge Ferrari Soltis 86 & Serge Ferrari FV381
Photography: © Alex Priego
The Granville Park Play Space Helios Shade Structures form a key part of a broader park upgrade within this suburban Sydney setting, delivering a coordinated shade solution that improves comfort, usability, and visual appeal across both the playground and waterplay areas.
The project features a series of circular tensile membrane canopies from the Helios Modular Shade Structure range, including a distinctive linked twin-ring configuration and a custom 8-metre diameter canopy over the waterplay zone. To complete the shade strategy, three Centra CS32 Architectural Umbrellas were also installed, creating additional shaded areas throughout the playspace. Together, these elements provide a cohesive and practical environment for families and the wider community.
The Brief
MakMax was initially engaged by the project architect to provide effective shade coverage for a new splash pad and playground within a council-managed public park. A key design driver was the use of circular forms, aligning with the broader architectural vision for the space.

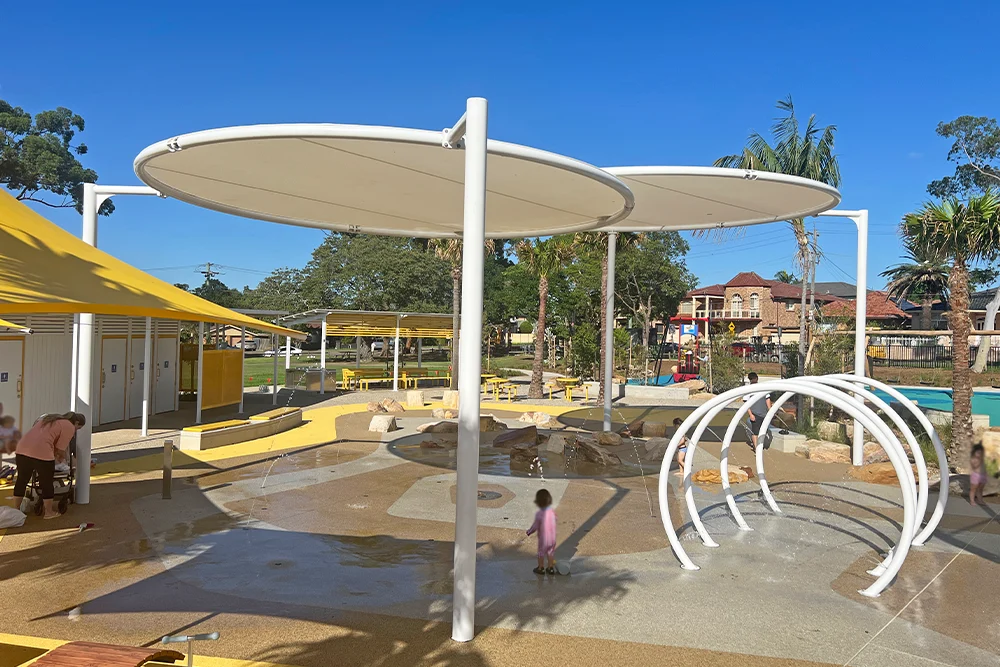

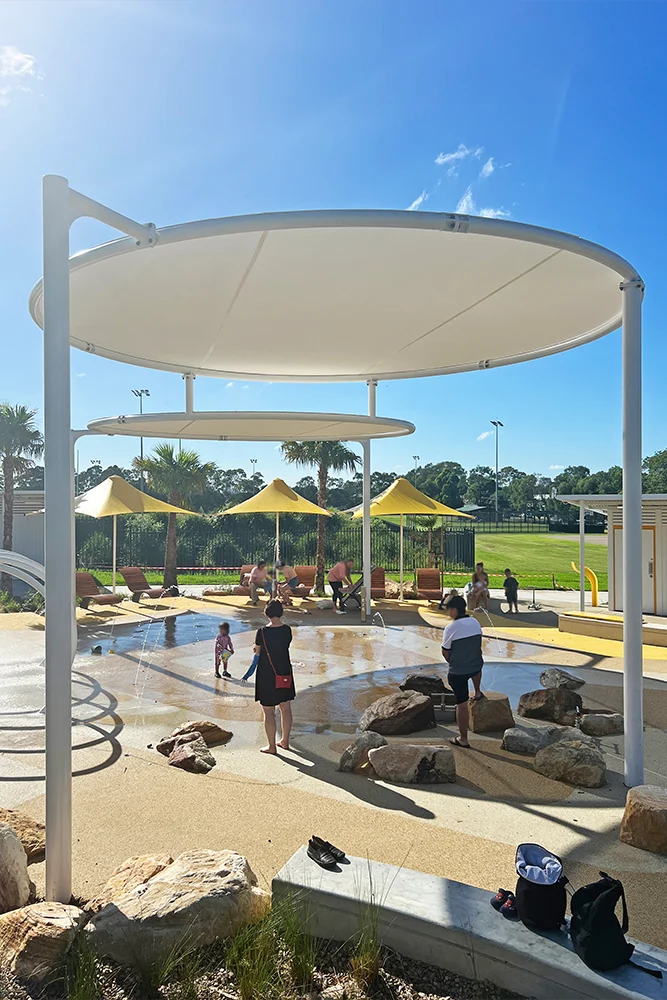

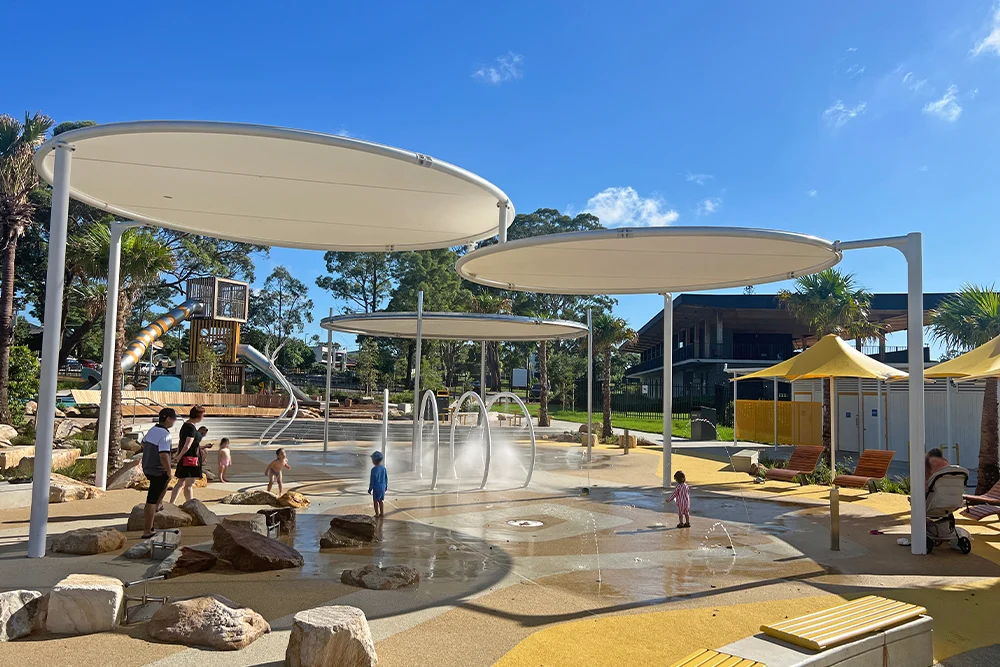

In response, MakMax proposed our Helios Modular Shade Structures in a linked twin-ring canopy concept, comprising two overlapping circular structures measuring 6.2 metres and 6.75 metres in diameter. Set at varying heights, these forms introduce visual interest while maintaining an open, unobstructed play area below. The Helios Shade Structures are supported by perimeter columns, carefully positioned to maximise usable space and maintain clear sightlines for supervision.

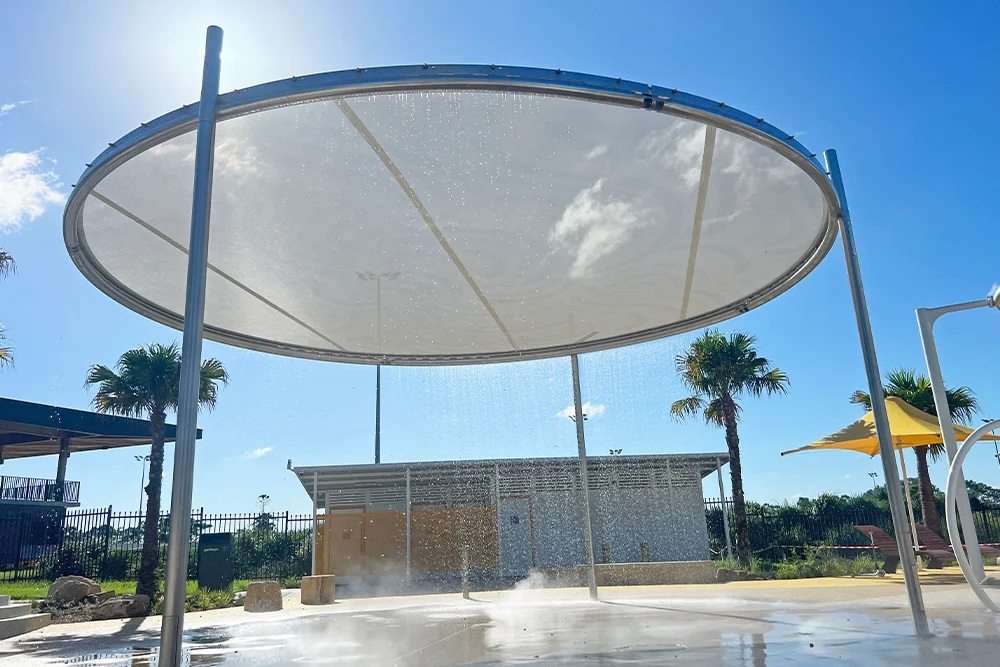

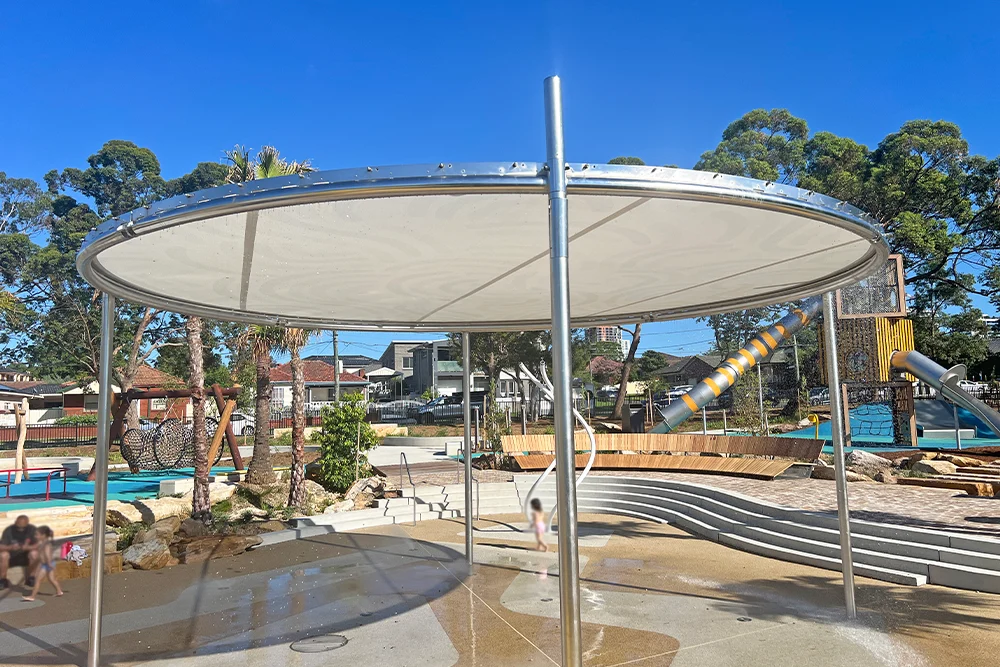

Following the success of this concept, MakMax was further engaged to deliver a printed canopy over a third Halo-style canopy over the waterplay zone. The Halo structure was designed with a water-curtain feature and lighting system integrated into the ring beam. Our scope was to provide a printed PVC mesh canopy over the halo ring.
The Concept
The Materials
Material selection played a critical role in balancing performance, durability, and visual quality. For the main Helios shade structures, Serge Ferrari Soltis 86 PVC mesh was chosen. This high-performance material offers effective solar protection while allowing airflow, helping to keep the space cooler and more comfortable, particularly during warmer months. Its refined finish also contributes to a more architectural appearance compared to standard shade mesh.
For the waterplay canopy, a different approach was required. Serge Ferrari Précontraint FV381 PVC mesh membrane was selected to accommodate a custom printed design specified by the architect. This allowed a subtle pattern to be incorporated into the canopy, adding visual texture without overwhelming the space. The material also performs reliably in wet environments, making it well suited to the integrated water feature.
Careful coordination ensured that all materials worked cohesively with the structural design, supporting long-term performance while maintaining the intended aesthetic.
The Result

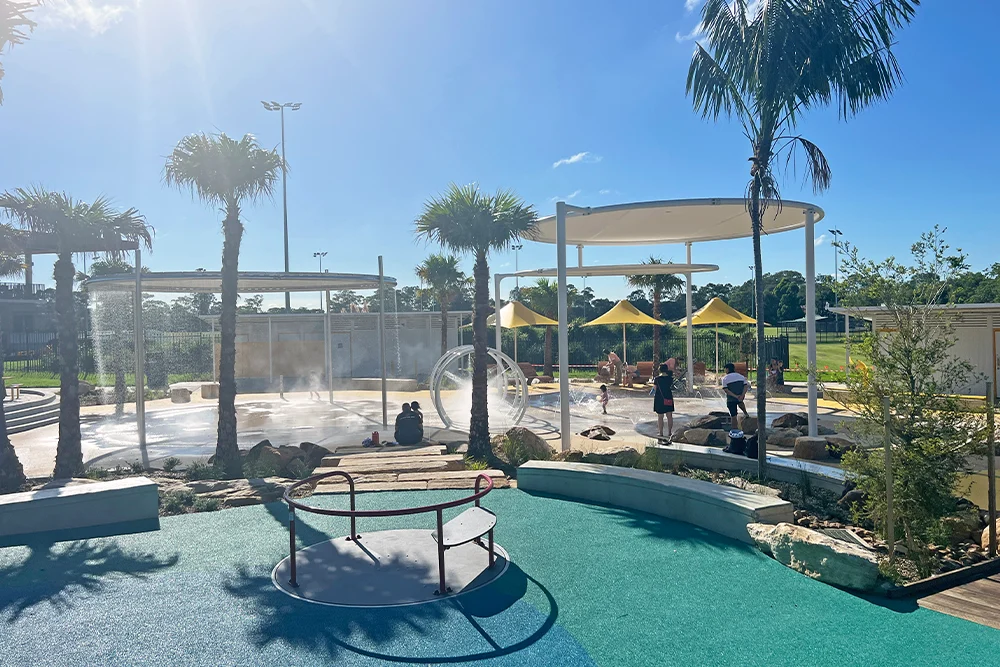

The completed Granville Park Play Space delivers a well-balanced combination of form and function. The circular Helios shade structures provide consistent shade coverage while maintaining an open and inviting atmosphere. Their elevated forms allow natural light and airflow to filter through, improving comfort without enclosing the space.
The waterplay canopy introduces an additional layer of engagement. Its integrated water and lighting elements create a dynamic experience for users, while the subtle printed pattern becomes more apparent when viewed from beneath, adding visual interest at a human scale.

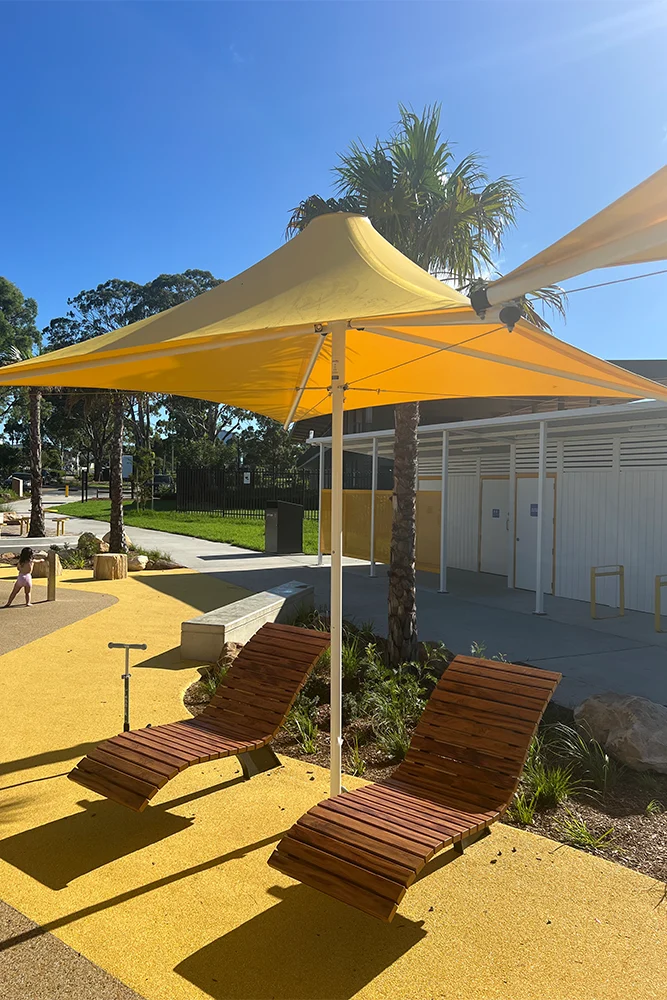

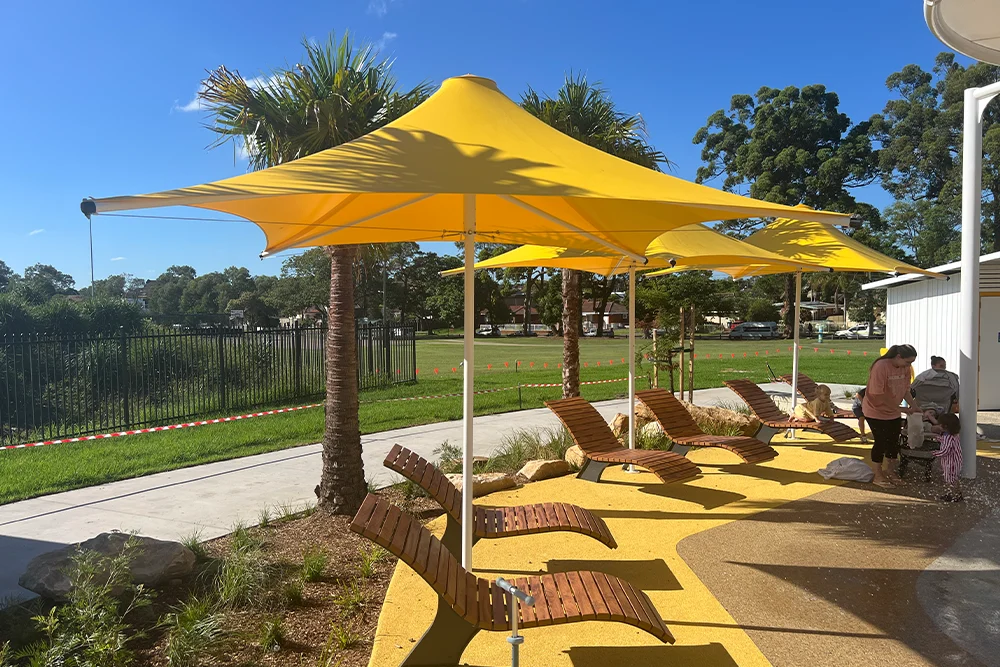

Importantly, the project supports year-round use of the park. By reducing direct sun exposure and creating cooler, shaded areas, the structures encourage longer visits and increased community interaction. The addition of the Centra CS32 Architectural Umbrellas further enhances flexibility, offering smaller pockets of shade for seating and informal gathering.
Overall, the project demonstrates how well-considered shade design can elevate public spaces, not only improving comfort and protection but also contributing to the identity and enjoyment of a community asset.
