Pavilion Modular Shade Structure

Pavilion Modular Shade Structure

Corner Support Shade Structure

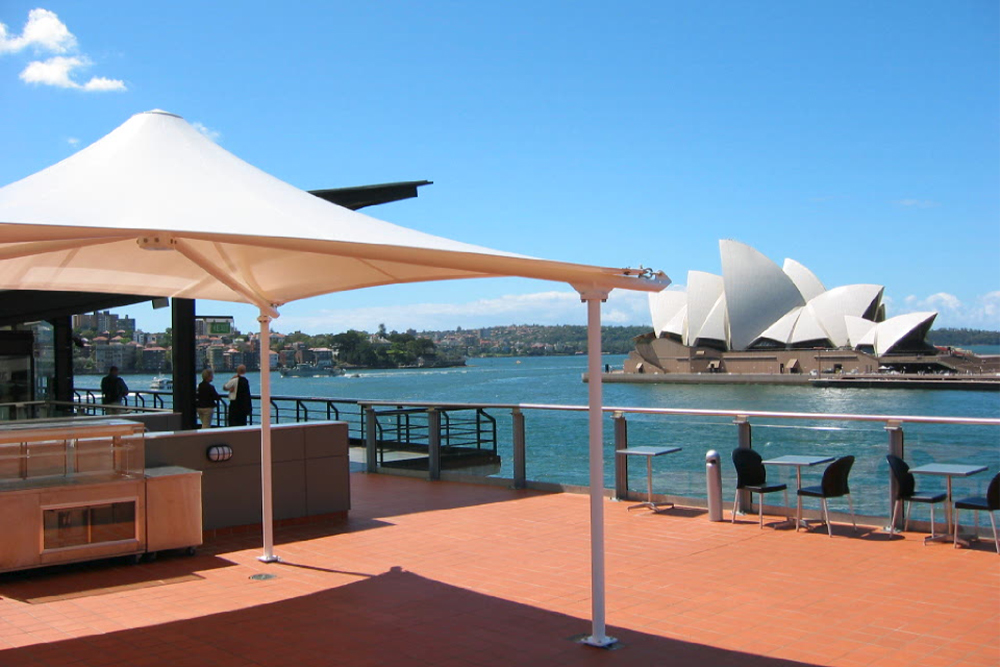

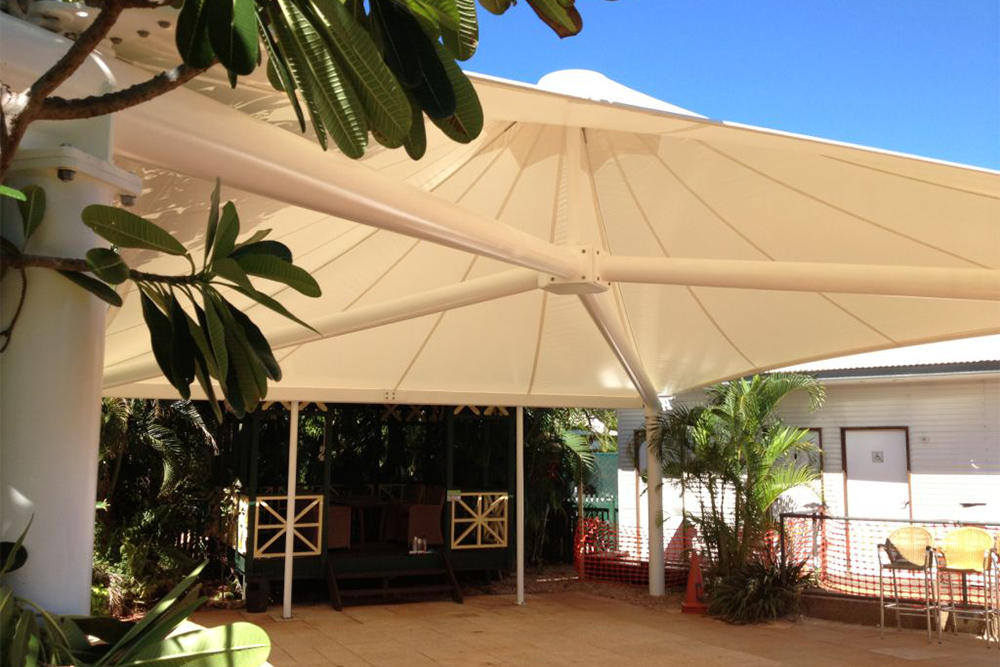

The Pavilion Modular Shade Structure has perimeter columns in each corner, providing clear access under the full canopy area.

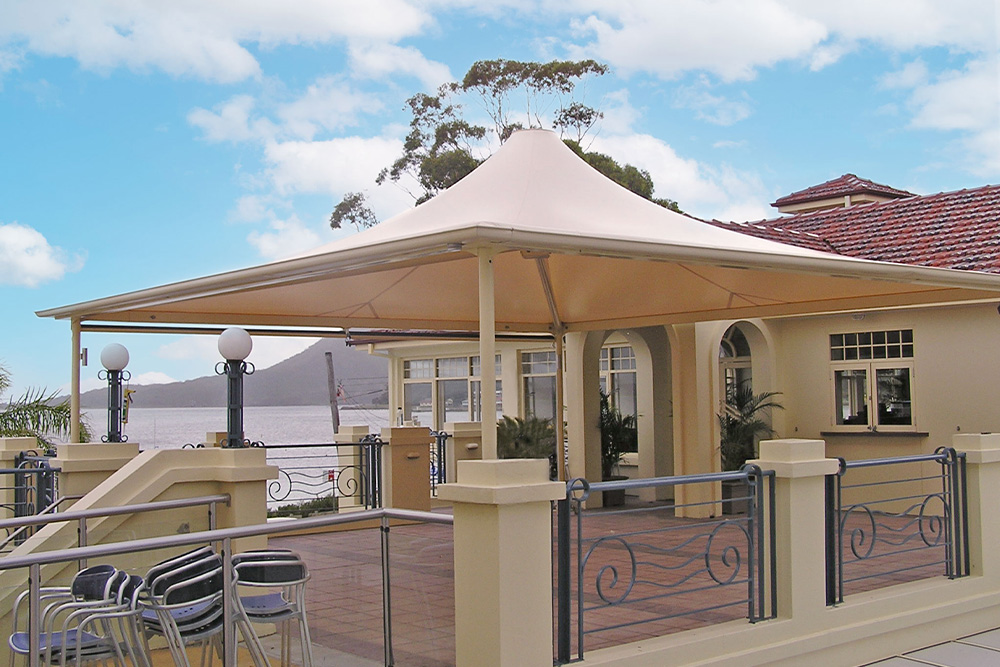

The perimeter columns have a lower foundation load compared to the Monaco and other central column structures, making it easier to install on existing slabs and ideal for integrating guttering and blinds. Pavilion perfect for outdoor dining areas, function spaces and wedding venues.

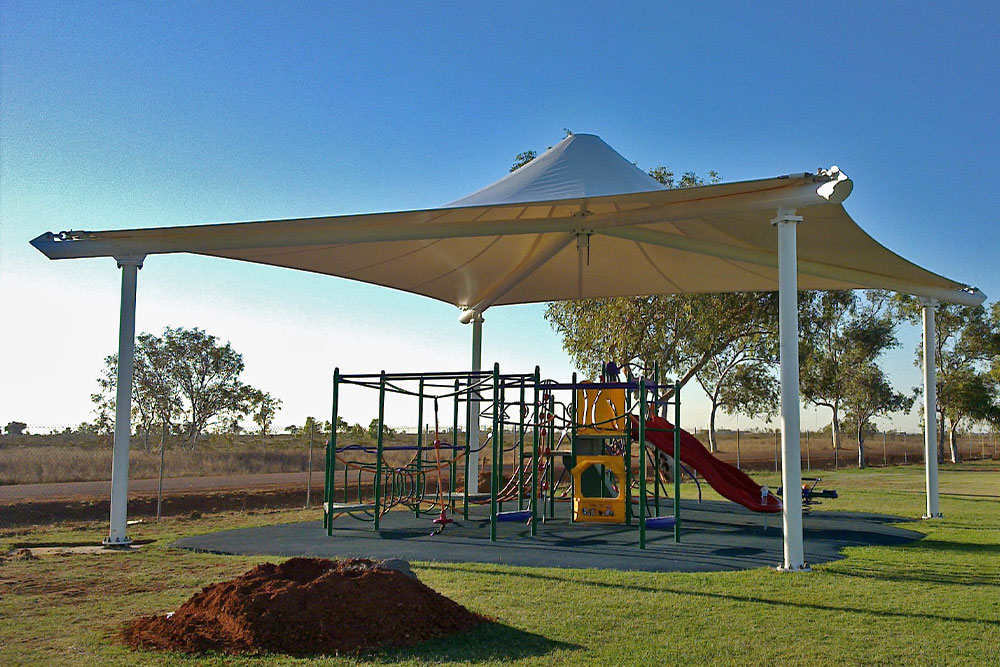

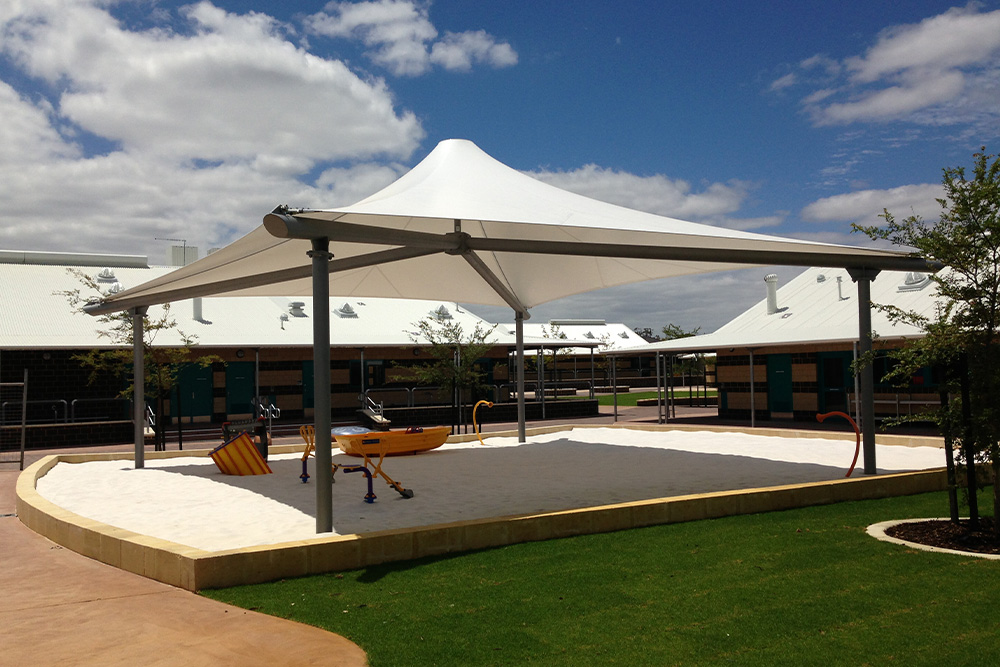

The Pavilion is also well suited to school assembly areas and playground shade, and multiple units can be joined together to create sheltered walkways.

  • Multiple units can be linked together to increase the shade and weather protection area.
  • Available in Contour Edge and Linear Edge.
  • Engineered as a permanent shade structure, Pavilion Modulars are designed for any Australian wind speed.
  • Completely weather-proof, Pavilion models include galvanised steel cables with stainless steel fittings and UV stabilised membrane.
  • Available with a range of accessories, such as LED lighting and heating.
  • Drop blinds and gutters can also be fitted to Pavilion Linear Edge models.

Pavilion Modular Standard Sizes

Canopy Size
Model Number
(L=Linear Edge)
(m)(L=Linear Edge)
Monaco shape 03
4 x 4PS40
5 x 5PS50
6 x 6PS60 / PS60L
7 x 7PS70 / PS70L
8 x 8PS80
9 x 9PS90

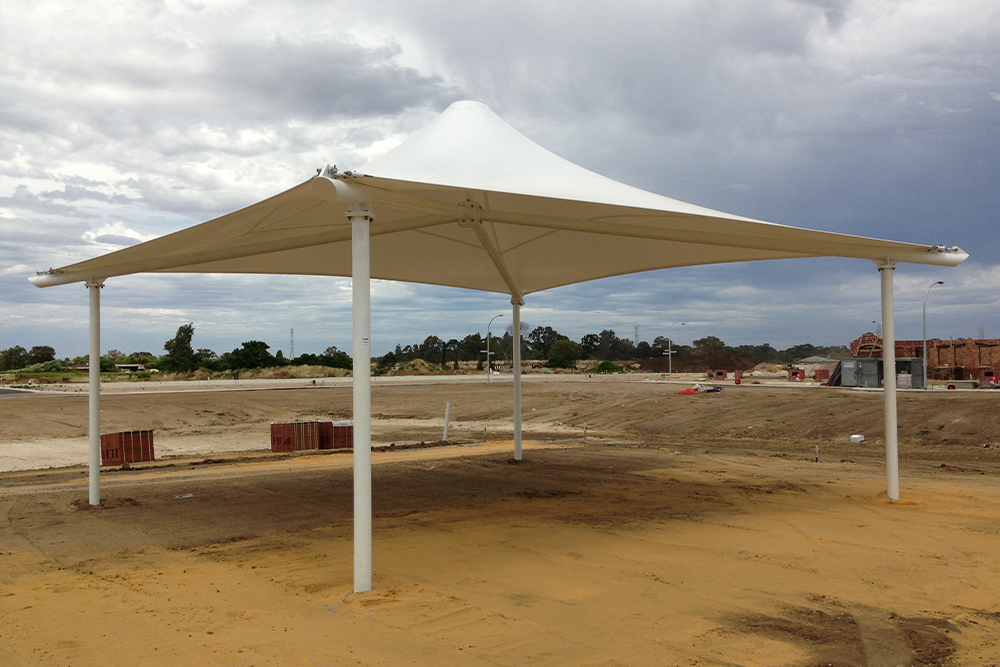

10 x 10PS100
12 x 12PS120

Linear Edge

Increase your usable space with a Pavilion Linear Edge model. Ideal for alfresco dining, a straight edge means more seating under the canopy.

A fixed, straight-edge also adds the ability to attach guttering or drop blinds, making the structure even more weather-proof.

Pavilion Linear Edge Diagram
