Protect Your Fleet With MakMax HNPC

If your business requires vehicle protection hail net, the MakMax HNPC (Hail Net Protection Canopy) System can provide a robust and economical hail risk-reduction solution for customers within the automotive and logistics industries.

Originally developed for the agricultural market, MakMax engineers have adapted and improved the HNPC system to create large, simple designs which are specifically intended for use as vehicle hail protection structures.

Our cantilevered column design means no guy cables or back-stays are required, allowing our clients to maximise the coverage to their sites by placing perimeter columns immediately adjacent to site boundaries. The cable grid system allows for large spans and a relatively simple installation process, ensuring speedy installation and minimal site disruption.,

A MakMax HNPC (Hail Net Protection Canopy) can range from 1,000 to 100,000 square meters coverage area.

MakMax HNPC is Ideal For

  • Vehicle Storage & Auction Yards
  • Auto Dealer & Car Rental Companies
  • Long-Term Airport Parking
  • Building & Construction Companies
  • 3rd Party Logistics Companies (3PL)
  • Original Equipment Manufactures (OEM)

Zero Gap Interface

Using a unique Zero Gap Interface system on all corners and membrane section connections ensures that there are no potential points of entry for damaging hail.

MakMax Zero Gap Interface

The Damage and Danger of Hail Storms

Sunshine Coast Storm 2019
Canberra January 2020 Hail Storm
Brisbane Hail Storm Oct 2020

Article: Hail Impact Hurt Bottom Line from Go Auto News

Redundancy Bays

In structures of significant length (such as large-span hail net canopies), failure can occur due to accumulated surface friction wind loads, particularly during severe weather events.

The MakMax Australia Hail Net Protection Canopy system incorporates additional wind friction-load analysis as part of the design and engineering phase. Points of potential failure are identified and addressed through the use of Redundancy Bays, where we add heavier truss-style columns to the structure at regular intervals, rather than just along the edges. The wind-load analysis conducted prior to installation helps to identified the most efficient placement of the redundancy bays.

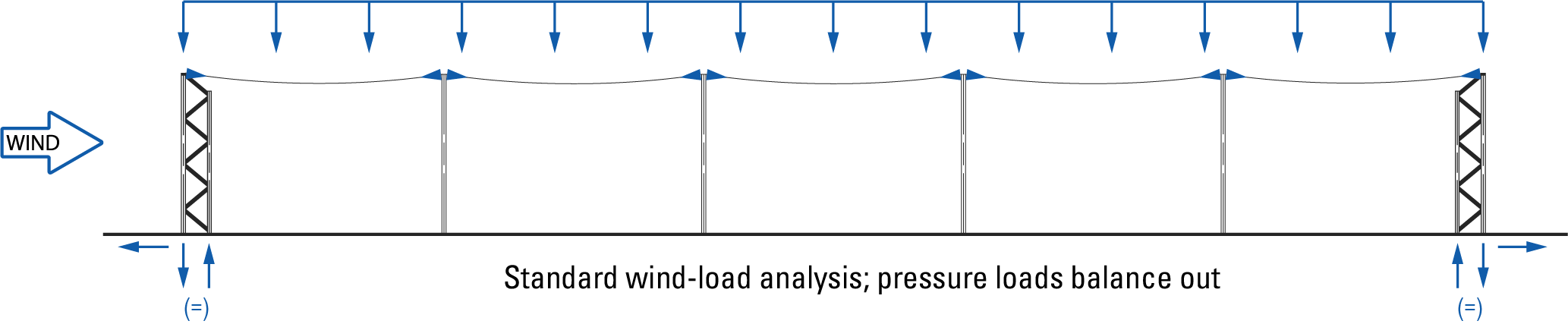

Standard Wind-load analysis - no redundancy

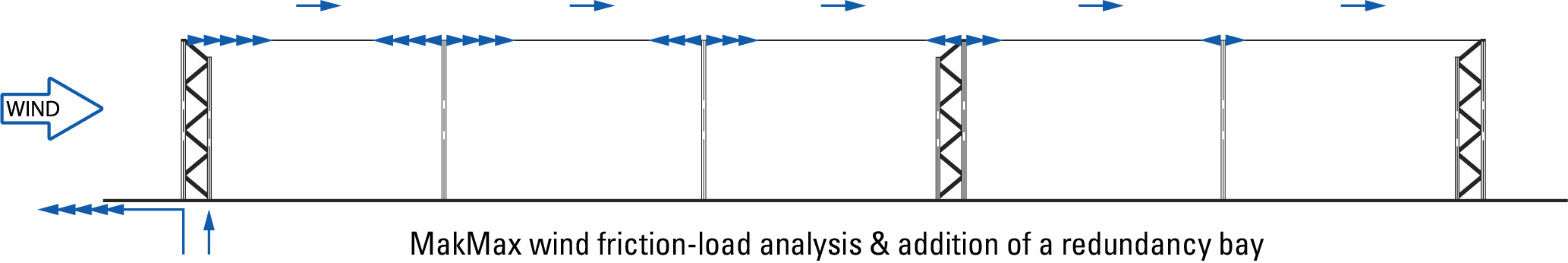

MakMax Wind Analysis - additional redundancy bay

Fabric Options

Quad Net Hail Net Detail

Quad Net

  • Provides adequate protection against hail
  • Simplified installation process
  • Easily removed and replaced
  • Lower initial cost
  • Produced from HDPE filament
  • Various apertures – 12mm is preferred
  • Black and white available
  • 10 Year Warranty (UV)
HDPE Hail Net Detail

HDPE Mesh (Shadecloth)

  • Provides shade as well as superior hail protection
  • Fully engineered panels
  • Can be fabricated to any width, length, and shape
  • High initial purchase cost, but lower ongoing costs/longer lifespan
  • Produced from HDPE filaments and tapes
  • Various types and shade factors are available
  • Range of colours are available
  • 10 Year Warranty (UV)

Would You Like More Information about as Hail Net Protection Canopy?

Contact us today to discuss your fleet protection requirements - 1300 625 629.
We are the market leader in the design, engineering, fabrication and installation of custom fabric structures for a wide variety of applications and industries. We have extensive project experience and offer endless possibilities when it comes to custom design solutions to meet your needs.
